Create an UpSet Plot of Shared and Unique Taxa

Source: R/visualisation.R
plot_taxa_upset.Rd

Generates a ggplot2-based UpSet plot to visualize the intersection patterns of taxa across different sample groups. This provides a scalable alternative to Venn diagrams for microbiome data.

Usage

plot_taxa_upset(
  me,
  tax_rank,
  group_var,
  plot_title = NULL,
  show_names = FALSE,
  group_labels = NULL,
  min_abundance = 0,
  min_prevalence = 0,
  filter_by_group = FALSE,
  text_size = 2,
  ...
)

Arguments

me

A microEDA or phyloseq object containing OTU table, taxonomy, and sample data.

tax_rank

Character string specifying the taxonomic rank to plot (e.g., "Phylum", "Family"). Must be a valid rank in the taxonomy table.

group_var

Character string indicating a sample metadata variable to group samples.

plot_title

Optional character string for the plot title. If NULL, a default title is generated based on tax_rank.

show_names

Logical. If TRUE, displays taxon names on intersection bars with italicized formatting. Default is FALSE.

group_labels

Named character vector mapping old group names to new labels (e.g., c("Old" = "New")).

min_abundance

Numeric value. Minimum abundance threshold for a feature to be retained. Must be non-negative. Features with abundance below this are considered absent.

min_prevalence

Numeric value. Minimum prevalence required for retention. If value is < 1, interpreted as proportion of samples; otherwise, as absolute number of samples.

filter_by_group

Logical. If FALSE (default), filtering is applied globally across all samples even if group_var is specified. This allows using group_var for stratification in plotting without affecting the filtering scope. If TRUE, filtering is applied within each group defined by group_var and group_requirement. See filter_features for more details on filtering arguments.

text_size

Numeric. Font size for taxon labels when show_names = TRUE. Default is 2.

...

Additional arguments for fine-tuning. Can include:

  • abundance_criterion: Character string. Criterion to use for filtering:

    prevalence:

    Retain features present in at least min_prevalence samples (within group if group_var is used) and with abundance >= min_abundance in those samples.

    mean:

    Also requires that the mean abundance across samples (or group) is >= min_abundance.

    Default: "prevalence".

  • group_requirement: Character string. When group_var is specified, determines whether the filter criterion must be met in "any" group or "all" groups. Default: "any".

  • keep_filtered: Whether to keep filtered out taxa as "Other" (Default: TRUE). Takes effect only for microEDA objects.

  • rm_missing: Logical. If TRUE, removes taxa with missing/unclassified entries at the specified rank. If FALSE, fills missing values by propagating the last known ancestor, labeling them as "Unclassified Last_Known_Parent_Clade" (e.g., "Unclassified Enterobacteriaceae"). (Default: FALSE).

Value

A ggplot object.

Details

The function performs the following steps:

  1. Validates the input me object.

  2. Filters taxa by min_abundance, min_prevalence.

  3. Aggregates counts by tax_rank.

  4. Determines taxon presence/absence per sample group.

  5. Constructs an UpSet plot using the ComplexUpset package.

Taxon names are formatted in italics when show_names = TRUE.

Examples

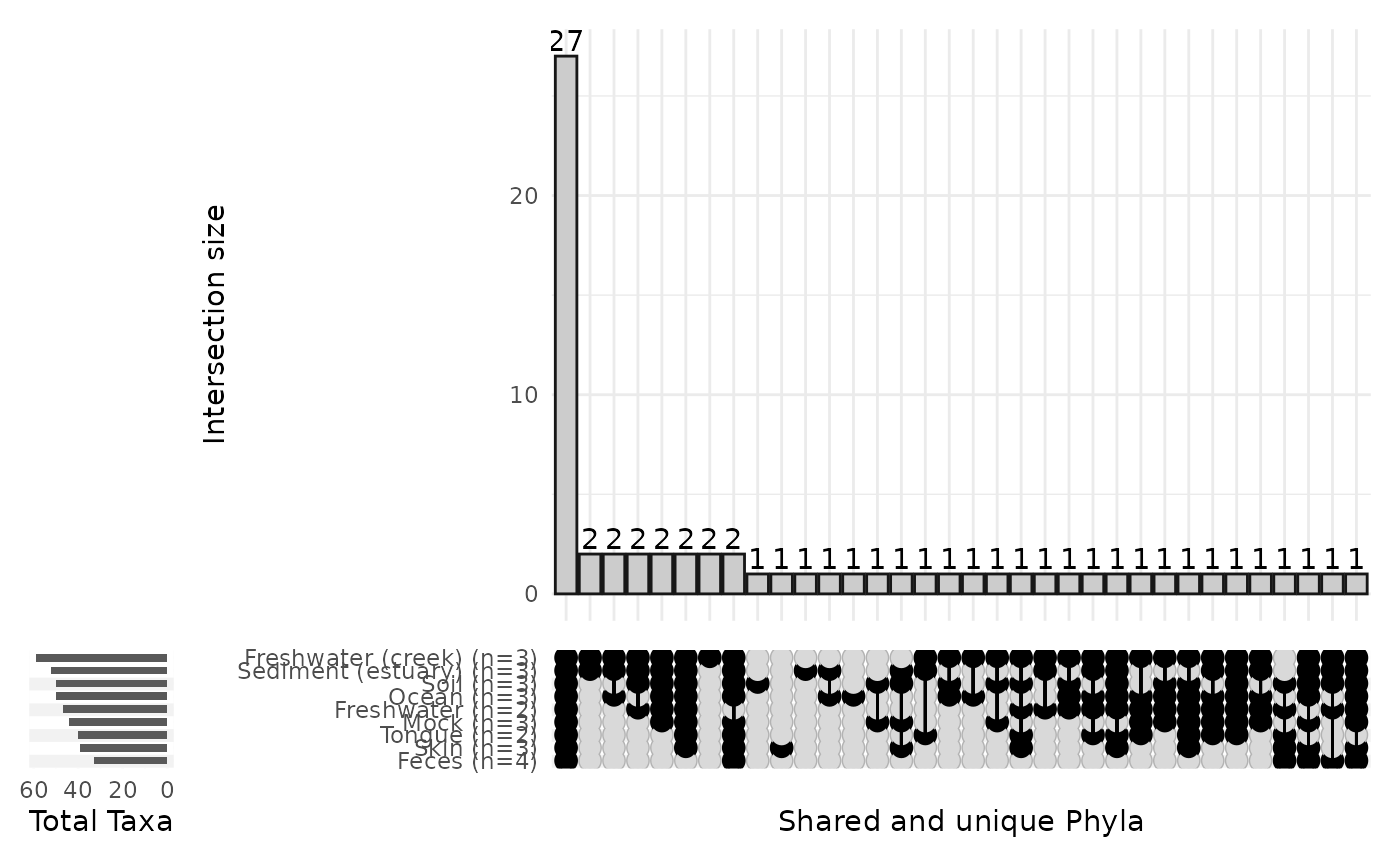

data(GlobalPatterns, package = "phyloseq")
plot_taxa_upset(GlobalPatterns, "Phylum", "SampleType")
#> Warning: Both 'min_abundance' and 'min_prevalence' are 0. No filtering will be applied.
#> Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
#> ℹ Please use `linewidth` instead.
#> ℹ The deprecated feature was likely used in the ComplexUpset package.
#>   Please report the issue at
#>   <https://github.com/krassowski/complex-upset/issues>.
